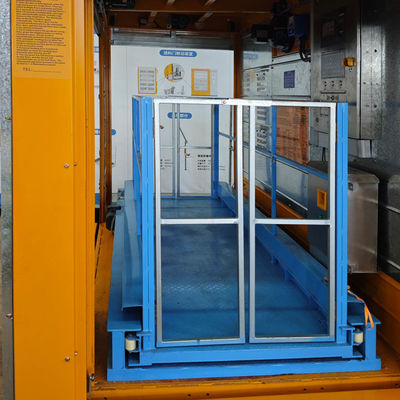

3-in-1 Solution Construction Hoist Cage with Retractable Load Deck Transport Personnel Bulk Material Palletised Loads
| Luogo di origine | Cina |
|---|---|
| Marca | KANGBO |
| Certificazione | TUV |
| Numero di modello | SC200, SC200/200, SC320, SC320/320 |
| Quantità di ordine minimo | 1Set |
| Prezzo | 10000-50000 USD |
| Imballaggi particolari | In blocco |
| Tempi di consegna | 30 giorni dopo il ricevimento dell'acconto |
| Termini di pagamento | T/t, l/c |
| Capacità di alimentazione | 300 unità al mese |
Contattimi gratis campioni e buoni.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Sistema di frenatura | Freno elettromagnetico | Controllo motorio | VFC |
|---|---|---|---|
| Unità di azionamento | Motore e cambio | Numero di cabine | 2 |
| Modalità operativa | Gabbia singola o doppia | Progetto | Design modulare |
| Tipo | Tipo a cremagliera e pignone | Sistema di controllo | Sistema di controllo PLC |
| Garanzia | 12 mesi | Elaborazione della procedura | Elaborato da macchine CNC e robot |
| Cravatta di ancoraggio | Immersione calda Galvanzied | Modalità di lavoro | Alberi la scalata |
| porte | 3 porte |
Descrizione di prodotto
Construction Hoist Cage with Retractable Load Deck | 2-3 T VFD Rack & Pinion Lift
Boost site logistics with our SC200/200 construction hoist cage + retractable load deck. 2 × 2 t capacity, 0–63 m/min VFD, CE/TUV, 300 m height.
Construction Hoist Cage Combined with Retractable Load Deck
Product Overview
Our SC200/200 construction hoist cage with integrated retractable load deck is engineered for high-rise projects that need fast, safe and flexible material/personnel flow. The telescopic deck extends 1 200 mm in 8 s, creating a temporary landing platform without extra crane time. Dual 2 t cages run on rack-and-pinion drive with VFD control, giving you zero-speed start, accurate levelling and 30 % energy savings compared with direct-on-line motors.
Key Benefits
• 3-in-1 solution: transport personnel, bulk material and palletised loads in one lift
• Retractable deck shortens cycle time.
• Modular mast sections (650 × 650 × 1 508 mm) hot-dip-galvanised for 25-year design life
• Overload, anti-fall and roof-top escape hatches certified to EN 12159 & CE
Technical Specifications
| Rated load per cage | 2 000 kg (2 t) |
| Max. lifting height | 300 m (450 m optional) |
| Lifting speed | 0–63 m/min (VFD) |
| Cage size (L×W×H) | 3.2 × 1.5 × 2.5 m |
| Motor power | 3 × 15 kW per cage |
| Power supply | 380 V/50 Hz (415 V, 440 V, 480 V on request) |
| Safety devices | SAJ40-1.2 anti-fall, overload sensor, upper/lower limit, emergency stop |
| Mast section | 650 × 650 × 1 508 mm, Q355B |
| Finishing | sand-blast SA 2.5, 120 µm zinc-rich epoxy, 80 µm polyurethane top coat |
Optional Upgrades
• Hot-dip-galvanised mast for coastal sites
• Automatic lubrication system for rack & pinion
• RFID floor selector
Why Partner With Us?
1. 20+ years hoist factory, 350+ staff, ISO 9001 & 14001, 6 S management
2. Exported to 35 countries—Singapore, Malaysia, UAE, India, Australia, Thailand.
3. Free lift planning & mast-tie layout
4. Agent/distributor support: spare-parts stock, training, co-branded literature
FAQ
Q1: Does the deck movement stop if a worker stands on the edge?
A1: Absolutely.
Q2: What certificates are included?
A2: TUV (Germany), ISO 14001, ISO 45001
Q3: Lead time for a 100 m twin-cage set?
A3: 15 days production + 7 days shipping to most Asian ports;
Call to Action
Send your lift height, load and site power details now. We’ll return a full quotation and 3-D mast tie drawing.
